Tube Bending Service Friction Drilling Pipe Fabrication Metal Stainless Steel Tube Bend Fabrication

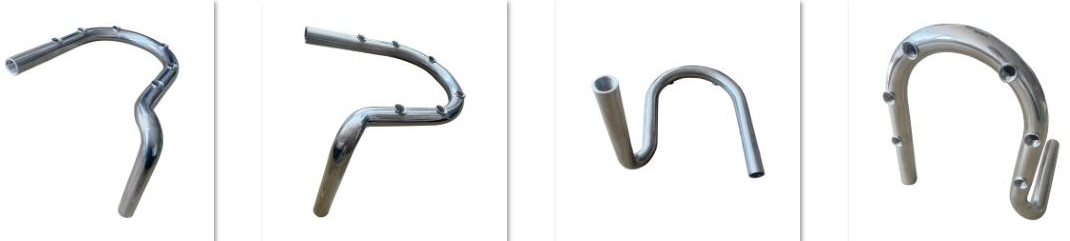

Complex 3D tube bending Part Friction Drilling NPT Tapping Internal Threaded Pipe Fabrication for Coolant Spray Nozzle

Material: Stainless stee tube od25/ wt3.5;

N.W:0.98 kgs

Process: tube-cutting-CNC bending- friction drilling-CNC machining- deburring +mirror polishing;

Precision: Complex 3D tube bending, Friction drilling and tapping for six NPT thread holes;

Explanations for friction drilling:

Friction drilling is a method of making holes in metal in which the material is pushed out of the way with the aid of heat from friction. The process is also called thermal drilling, flow drilling, form drilling, or friction stir drilling. Friction drilling is commonly used to create holes for strong mounting or connection.

Advantages:

1. Very quick process (2 to 6 seconds)

2. The process reshapes all material so that no material is lost. The excess material forms a sleeve that is about 3 times longer than the original thickness of the target material, which makes it possible to make very strong bolt joints in thin material.

3. It is a clean process because no litter (particles) is produced.

4. No access needed to back of workpiece, as with press-in or self-clinching hardware.

5. More reliable and faster than rivet nuts (an alternative that also does not require access to back of workpiece).

6. Works in almost all kinds of metal.
